Specs, Features & Heavy-Haul Capability

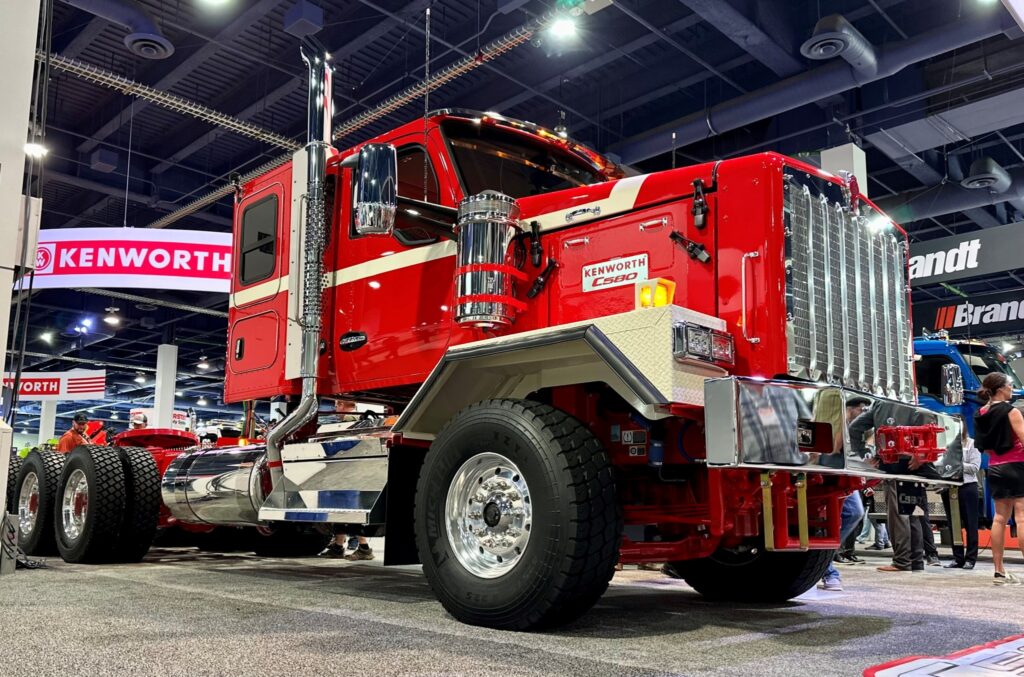

Kenworth C580 Overview
The Kenworth C580 is Kenworth’s next-generation extreme-duty vocational truck, designed to replace the legendary C500 for the most demanding off-highway and heavy-haul applications. Built for industries like mining, oilfield, logging, and specialized transport, the C580 combines massive capability with modern technology, advanced safety systems, and improved driver comfort. With up to one million pounds of gross combination weight capacity, multiple axle configurations, and powerful Cummins X15 engine options, the Kenworth C580 is engineered to handle the toughest jobsites and harshest operating environments.
Kenworth C580 Specs
The C580 is the answer to the most demanding trucking applications such as mining, logging, heavy equipment transport, oilfield operations, and other severe‑service jobs. With extreme‑duty capability and multiple configuration options, this truck gives drivers the durability and strength they need to get the job done right.
Engine, Horsepower & Torque
The C580 engine specs are built around the Cummins X15 platform, delivering maximum pulling power needed for extreme loads and harsh job site conditions.
- Up to 605 horsepower
- Up to 2,050 lb-ft of torque
- Fully EPA-compliant
Transmission Options
These C580 transmission options offer the flexibility to match a wide range of applications to accommodate the driver’s preference:
- Manual transmission
- Allison 4000 & 6000 Series automatic transmissions
- Eaton Endurant XD Pro automated transmission
Gross Combination Weight Rating (GCWR)
The GCWR of the Kenworth C580 reaches up to 1 million lbs., making it an idea choice for heavy haul, oversized loads, and specialized transport operations.
Axle & Drive Configurations
The C580 axle configurations and ratings versatile and durable for specific vocational needs, from off-road applications to heavy-duty hauling.
Axle Configurations:
- Single‑ or twin‑steer configurations
- Front-drive options from 4×4 up to 10×10
Axle Ratings:
- Steer Axle Rating up to 44,000 lb.
- Drive Axle Rating: up to 165,000 lb.
C580 Chassis, Hood Design and Cooling System
Its chassis and larger hood design was created to thrive in extreme workload environments:
- Massive 1,780 in² cooling module to support high‑horsepower engines in slow‑speed, stationary, high‑altitude, or hot climates
- Sheet metal hood and rugged fenders with removable panels that improve serviceability and durability
- Dual external 13″ stainless steel ERA air cleaners for high performance and classic Kenworth styling
- Abrasion‑resistant wiring harnesses and reinforced crossmembers for tough vocational use
Kenworth C580 Features

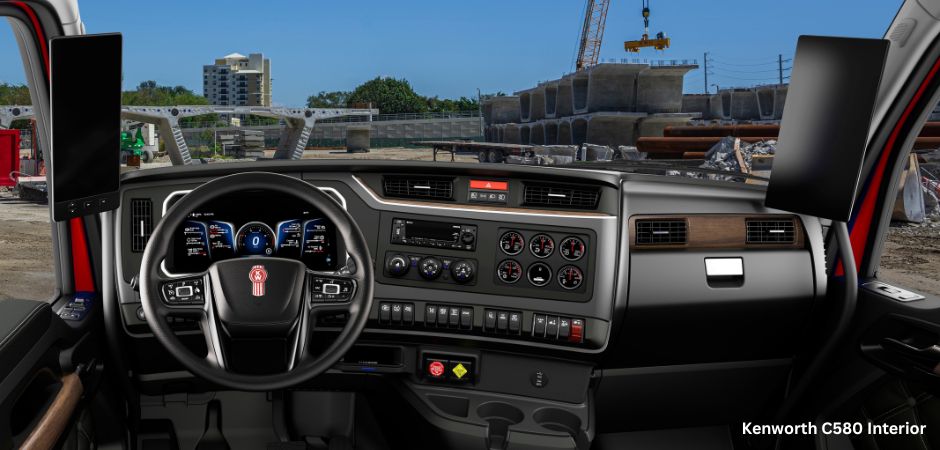

Kenworth custom-engineered this model to handle a variety of terrains and weather conditions without drivers needing to sacrifice comfort. This technology-forward cab includes a:
- Larger Windshield
- 15-inch Digital Display
- Smart Wheel
- Electronic Park Brake
- Digital Mirrors
- Advanced Driver Assistance Systems (ADAS)
- TruckTech+ Remote Diagnostics
C580 Primary Applications
The C580’s platform and configurability make it ideal for:
- Heavy‑haul operations
- Mining and aggregates
- Logging and forestry
- Oilfield & energy services
- Heavy equipment transport
- Severe off‑road applications
Kenworth C580 vs. C500
| Features / Specifications | C580 | C500 |
|---|---|---|
| Production Status | Model Year 2027 | Discontinued after 2026 |
| Primary Role | Extreme-duty, off-highway, heavy-haul | Extreme-duty, heavy-haul, and severe service |
| GCWR | Up to 1,000,000 lbs. | Up to 900,000 lbs. |
| Horsepower | Up to 605 HP (Cummins X15 standard) | Up to 600 HP (Cummins/PACCAR options) |
| Torque | Up to 2,050 lb-ft | Varies by spec |
| Axle Configuration | 4×4, 6×6, 8×8, 10×10 | Twin steer, heavy-haul setups |
| Cooling System | 1,780 sq-in cooling module | High-capacity radiator options |
| Technology | ADAS, remote diagnostics | Minimal modern tech |
| Frame & Durability | Reinforced frame, improved wiring protection, easier serviceability | Rugged frame |
Kenworth C580 FAQ
- Is the C580 replacing the C500?
- Yes, the Kenworth C580 is officially replacing the C500. Kenworth has confirmed that production of the C500 will end in 2026, with the C580 going into production in early 2027 and taking over as its successor.
- What engine does the C580 use?
- The Kenworth C580 is powered by the Cummins X15 engine, one of the most proven heavy-duty engines in the industry designed for extreme-duty, high-load applications.
- What is the max weight capacity of the Kenworth C580?
- The C580 has a maximum gross combination weight (GCW) of 1,000,000 (1 million) pounds.
- What industries use the C580?
- The Kenworth C580 is designed for the most demanding vocational industries, including:
- Oil and gas (oilfield operations)
- Mining and quarry work
- Logging and forestry
- Heavy haul and oversized transport
- Construction and off-highway applications
- The Kenworth C580 is designed for the most demanding vocational industries, including:
C580
When your job demands strength and reliability, the C580 is your key to success. Designed for off-highway and severe-service applications, Kenworth engineered this truck to preserve its iconic rugged design while implementing more modern comforts, advanced technologies, and unmatched capabilities. Smarter and stronger than ever, this extreme-duty vehicle is ready to take on whatever job comes its way.
